Roulette Lever Wall Bonnet & Rapid Action Spindle with 15mm Extension of Handle Height

Photo: RL2507 in Chrome Plate (CP) finish

More Images...


Roulette Lever Wall Bonnet & Rapid Action Spindle with 15mm Extension of Handle Height


Specify in Order Notes if Hot or Cold Required.

Lever turning direction diagram available in FAQ Section. Figure 1.2 is shown in photo, Figure 1.1 has a line marking on the bonnet's square section.

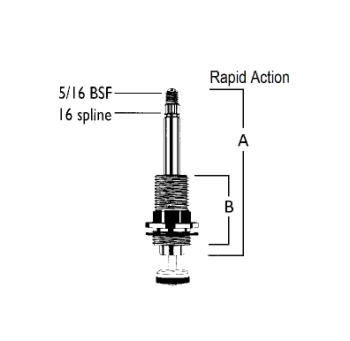

A = 110mm
B = 36mm without supplied adjustable (removable) extension piece on bonnet, between 48mm to 59mm with supplied adjustable (removable) extension piece on bonnet.

The extended bonnet & spindle can help deal with situations where the breech is mounted deeper inside the wall. Depending on the situation you may also need to add a Trouble Ring to the wall flange, these are separate items and are additional cost.

Installation & servicing instructions for Rapid Action® spindles are supplied with the tapware but are also available for download here.
SKU: RL2507


Unit of MeasureEach

Ex GST: AUD $89.38 Inc GST: AUD $98.32
*
Please select options below...
Please note this is a maturing/living metal finish.

Maximum number of characters: 255

Required Fields

Ex GST: AUD $89.38 Inc GST: AUD $98.32
+
-
Product Description Specification Order Times Finishes Guide Rapid Action® FAQ Turning Diagram Warranty
