Mounting & Under Assembly Guide


Jump to:    Basin Sets    Sink Sets    Duo Mixers & Flick Mixers    Pillarcocks & Pillar Taps


Basin Sets

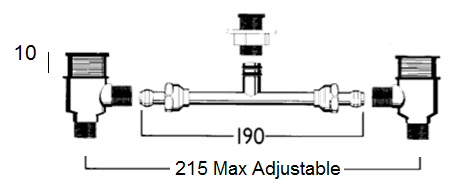

Basin Standard Under Assembly
SKU Variation Code for this Under Assembly:  Not applicable, standard on all basin sets.

This is the standard T piece under assembly included with basin sets.


Basin Standard Under Assembly

Maximum Bench Thickness: 10mm

Spacing (Centre to Centre): 215mm

Adjustable Spacing: Yes, can be cut down on installation.
The minimum recommended Centre to Centre measurement is 130mm, you will need to allow for spacing of the relevant tap set's flanges.

Connections: 2 x 15 BSP Threaded Connections (1 on each stop body).

Mounting Hole Sizes: Hole sizes required are a minimum diameter of 32mm (1 & ¼ inches) for the taps and minimum of 25.4mm (1 inch) for the outlet. The relevant tap's flange should cover any variation to this, please check the individual tap diagram for confirmation. Cover plates are available or can be manufactured to order if required.

Basin Standard Under Assembly

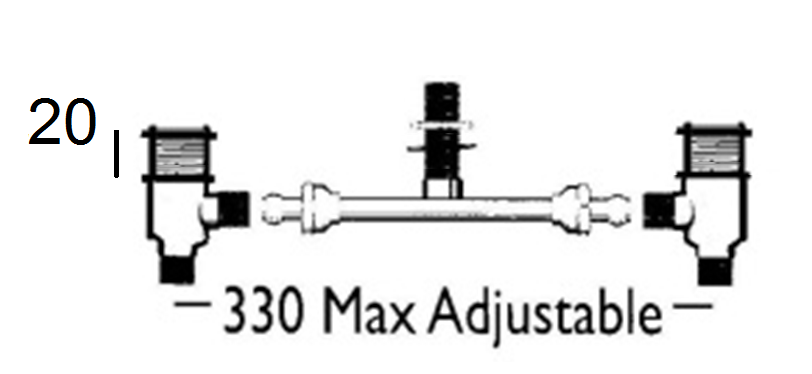

Basin Vanity Under Assembly
SKU Variation Code for this Under Assembly:  -VUA   /   Price variation applies for this upgrade.

This upgrade allows some further spacing distance adjustment for the basin set and has a taller outlet mounting.


Basin Vanity Under Assembly

Basin Vanity Under Assembly

Inverted:
Inverted Basin Vanity Under Assembly

Maximum Bench Thickness: 20mm

Spacing (Centre to Centre): 330mm

Adjustable Spacing: Yes, can be cut down on installation.
The minimum recommended Centre to Centre measurement is 130mm, you will need to allow for spacing of the relevant tap set's flanges.

Tip: You can invert the T piece of the under assembly to connect it to another location on the bench - this allows you to position a hob outlet in a different position as desired. Additional components are required to achieve this, please contact us to discuss.

Connections: 2 x 15 BSP Threaded Connections (1 on each stop body).

Mounting Hole Sizes: Hole sizes required are a minimum diameter of 32mm (1 & ¼ inches) for the taps and minimum of 25.4mm (1 inch) for the outlet. The relevant tap's flange should cover any variation to this, please check the individual tap diagram for confirmation. Cover plates are available or can be manufactured to order if required.

Basin Vanity Under Assembly

Basin Vanity Under Assembly

Inverted:
Inverted Basin Vanity Under Assembly

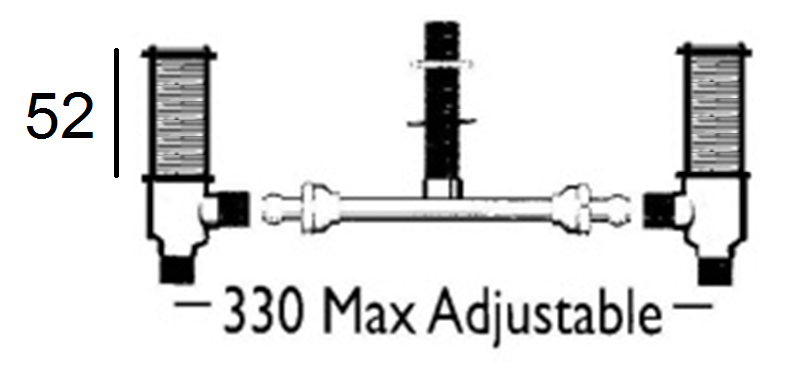

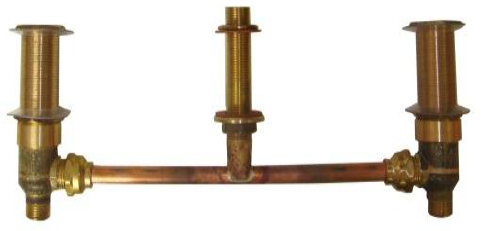

Basin Thick Bench Upgrade
SKU Variation Code for this Under Assembly:  -TBUA   /   Price variation applies for this upgrade.

This upgrade is significant in terms of material and installation flexibility.


Basin Thick Bench Upgrade

Basin Thick Bench Upgrade

Maximum Bench Thickness: 52mm

Spacing (Centre to Centre): 330mm

Adjustable Spacing: Yes, can be cut down on installation.
The minimum recommended Centre to Centre measurement is 130mm, you will need to allow for spacing of the relevant tap set's flanges.

Connections: 2 x 15 BSP Threaded Connections (1 on each stop body).

Mounting Hole Sizes: Hole sizes required are a minimum diameter of 32mm (1 & ¼ inches) for the taps and minimum of 25.4mm (1 inch) for the outlet. The relevant tap's flange should cover any variation to this, please check the individual tap diagram for confirmation. Cover plates are available or can be manufactured to order if required.

Basin Thick Bench Upgrade

Basin Thick Bench Upgrade

Custom Under Assembly - Priced Upon Request
SKU Variation Code for this Under Assembly:  -MTO (Made to Order)

We can make custom under assemblies to suit specific requirements, for situations where the spacing must be larger or allowances for bench thickness are greater than 52mm.



Sink Sets

Sink Vanity Under Assembly
SKU Variation Code for this Under Assembly:  Not applicable, now standard on what were previously Forward Bowl Sink Sets (FBSS) unless otherwise specified.

This change has occurred with the 2017 Price Book and supersedes the 2014 Price Book to assist with the further standardisation of
top assembly components. FBSS kits are still available, see details below and options tables on relevant products.


This under assembly allows spacing distance adjustment for the sink set and has a tall outlet mounting.


Sink Vanity Under Assembly

Sink Vanity Under Assembly

Inverted:
Inverted Sink Vanity Under Assembly

Maximum Bench Thickness: 20mm

Spacing (Centre to Centre): 330mm

Adjustable Spacing: Yes, can be cut down on installation.
The minimum recommended Centre to Centre measurement is 130mm, you will need to allow for spacing of the relevant tap set's flanges.

Tip: You can invert the T piece of the under assembly to connect it to another location on the bench - this allows you to position a hob outlet in a different position as desired. Additional components are required to achieve this, please contact us to discuss.

Connections: 2 x 15 BSP Threaded Connections (1 on each stop body).

Mounting Hole Sizes: Hole sizes required are a minimum diameter of 32mm (1 & ¼ inches) for the taps and minimum of 25.4mm (1 inch) for the outlet. The relevant tap's flange should cover any variation to this, please check the individual tap diagram for confirmation. Cover plates are available or can be manufactured to order if required.

Sink Vanity Under Assembly

Sink Vanity Under Assembly

Inverted:
Inverted Sink Vanity Under Assembly

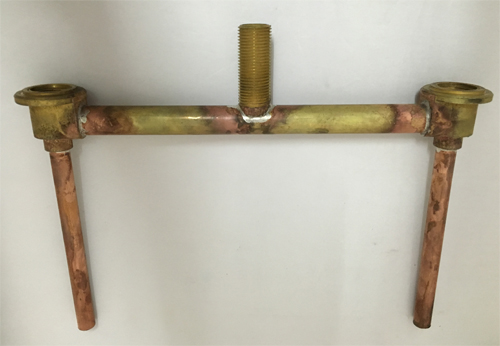

Forward Bowl Sink Set (FBSS) Under Assembly
SKU Variation Code for this Under Assembly:  -FBSS

This under assembly has fixed dimensions (it is welded as one piece). It can be made to other spacing sizes upon request.


Forward Bowl Sink Set Under Assembly

Forward Bowl Sink Set Under Assembly

Maximum Bench Thickness: Sheet metal sink or equivalent.

Spacing (Centre to Centre): 255mm

Adjustable Spacing: No.

Connections: 2 x 140mm Copper Tails (Outside Diameter 1/2 inch, 12.7mm, Nominal Size: 3/8).

Mounting Hole Sizes: Hole sizes required are a minimum diameter of 32mm (1 & ¼ inches) for the taps and minimum of 25.4mm (1 inch) for the outlet. The relevant tap's flange should cover any variation to this, please check the individual tap diagram for confirmation. Cover plates are available or can be manufactured to order if required.

Forward Bowl Sink Set Under Assembly

Forward Bowl Sink Set Under Assembly

Sink Thick Bench Upgrade
SKU Variation Code for this Under Assembly:  -TBUA   /   Price variation applies for this upgrade.

This upgrade is significant in terms of material and installation flexibility.


Sink Thick Bench Upgrade

Sink Thick Bench Upgrade

Maximum Bench Thickness: 52mm

Spacing (Centre to Centre): 330mm

Adjustable Spacing: Yes, can be cut down on installation.
The minimum recommended Centre to Centre measurement is 130mm, you will need to allow for spacing of the relevant tap set's flanges.

Connections: 2 x 15 BSP Threaded Connections (1 on each stop body).

Mounting Hole Sizes: Hole sizes required are a minimum diameter of 32mm (1 & ¼ inches) for the taps and minimum of 25.4mm (1 inch) for the outlet. The relevant tap's flange should cover any variation to this, please check the individual tap diagram for confirmation. Cover plates are available or can be manufactured to order if required.

Sink Thick Bench Upgrade

Sink Thick Bench Upgrade

Custom Under Assembly - Priced Upon Request
SKU Variation Code for this Under Assembly:  -MTO (Made to Order)

We can make custom under assemblies to suit specific requirements, for situations where the spacing must be larger or allowances for bench thickness are greater than 52mm.



Hostess Forward Bowl Sink Set Under Assembly
SKU Variation Code for this Under Assembly:  Not applicable, offered on specific sets.

This under assembly has fixed dimensions (it is welded as one piece) and the outlet is set to one side. The breech section to the outlet is made from copper so it can be bent by the plumber on installation to suit the specific requirement. We can make to other spacing sizes upon request.

Please note that this type of under assembly is designed to be installed in the same manner as a traditional forward bowl sink set. If you wish to install a hostess under assembly in the same manner as a vanity sink set, please see the Sink Vanity Under Assembly section above. With that arrangement it is possible to invert the T piece of the under assembly to connect it to another location on the bench, thus allowing you to position a hob outlet in a different position as desired. Please note that additional components are required to achieve this beyond a standard vanity sink set, please contact us to discuss.


Hostess Forward Bowl Sink Set Under Assembly

Maximum Bench Thickness: Sheet metal sink or equivalent.

Spacing (Centre to Centre): 254mm Fixed Welded Distance from outlet to furthest tap.

Adjustable Spacing: No.

Connections: 2 x 140mm Copper Tails (Outside Diameter 1/2 inch, 12.7mm, Nominal Size: 3/8).

Mounting Hole Sizes: Hole sizes required are a minimum diameter of 32mm (1 & ¼ inches) for the taps and minimum of 25.4mm (1 inch) for the outlet. The relevant tap's flange should cover any variation to this, please check the individual tap diagram for confirmation. Cover plates are available or can be manufactured to order if required.

Hostess Forward Bowl Sink Set Under Assembly

Filtered Water Forward Bowl Sink Set Under Assembly
SKU Variation Code for this Under Assembly:  Not applicable, offered on specific sets.

This under assembly has fixed dimensions (it is welded as one piece) and the outlet has a third tap for the control of a filter water or rain water source. We can make to other spacing sizes upon request.


Filtered Water Forward Bowl Sink Set Under Assembly

Maximum Bench Thickness: Sheet metal sink or equivalent.

Spacing (Centre to Centre): 255mm (Fixed Welded Distance) Centre to Centre + 127mm to Third Tap (Overall 382mm).

Adjustable Spacing: No.

Connections: 3 x 140mm Copper Tails (Outside Diameter 1/2 inch, 12.7mm, Nominal Size: 3/8).

Mounting Hole Sizes: Hole sizes required are a minimum diameter of 32mm (1 & ¼ inches) for the taps and minimum of 25.4mm (1 inch) for the outlet. The relevant tap's flange should cover any variation to this, please check the individual tap diagram for confirmation. Cover plates are available or can be manufactured to order if required.

Filtered Water Forward Bowl Sink Set Under Assembly

Duo Mixers and Flick Mixer Connections

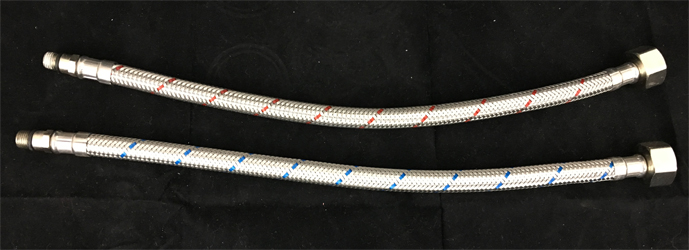

Flexible Hoses
These are the standard 15 BSP hose connections for bench tops. The standard length is 300mm and the hoses can be made longer upon request.

Information regarding mounting requirements for flick mixers are available with the relevant products.


Flexible Hoses

Flexible Hoses

Copper Tails - Priced Upon Request
SKU Variation Code for this Under Assembly:  -MTO (Made to Order)

By request we can make copper tails out of the bottom of the tapware bodies. This option is made and priced based on the request.


Copper Tails Example

Copper Tails Example

Pillarcock and Drinking Water Pillar Taps Connections

Standard Running Nipple Thread
A length of 15 BSP brass running nipple connects to the base of our pillarcocks. A basin lock nut holds the tap body to the basin or bench top.

In the case of our standard Pillarcock the length of this running nipple from the body of the tap is 60mm. The NT Pattern Pillarcock (pictured right) has a 45mm tail.

Our Drinking Water Pillar Taps are able to be female or male 15 BSP. A loose tail fitting is supplied to allow for either requirement.

Mounting Hole Sizes: Hole sizes required are a minimum diameter of 25.4mm (1 inch) for the outlet tail to fit through. The relevant tap's flange should cover any variation to this, please check the individual tap diagram for confirmation. Cover plates are available or can be manufactured to order if required.



Standard Running Nipple on the Base of a NT Pillarcock

Standard Running Nipple on the Base of a NT Pillarcock
