- 32mm CTS P Trap to Suit 40 PVC - Easy Fix Outlet Type

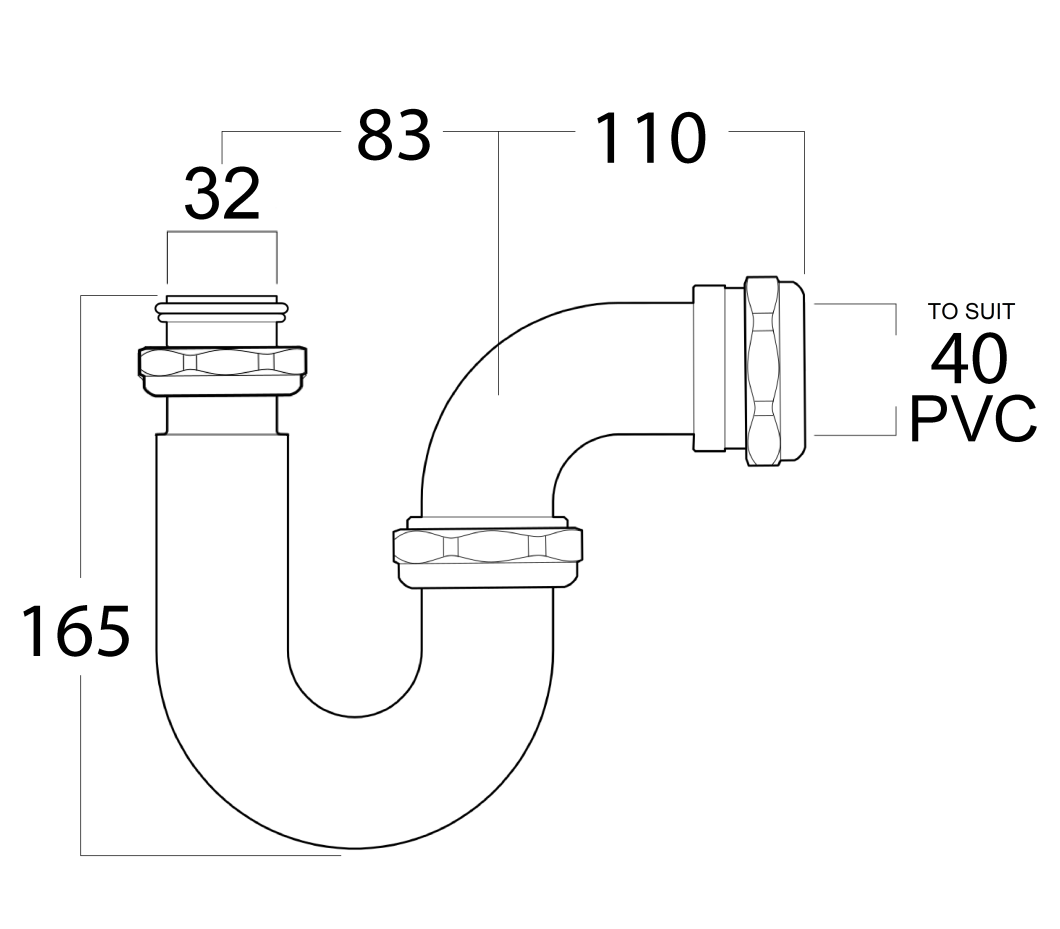

Inlet to suit 32mm plug & waste. Outlet has a female easy fix compression nut & o-ring to suit 40 PVC tube.
If needing additional vertical distance for the inlet a 32mm CTS trap extension is required.
For reference, DN40 non pressure PVC outside diameter = approx 42.8mm.
Product Function | P Trap |
---|---|
Inlet Size | 1 ¼" BSP |
Outlet Size | 40mm to suit PVC DWV Pipe |
Tube Diameter | 40 CTS (38.1mm) |
Material | Copper Alloy |
Relevant Standards | AS 1589 |
Quantity Unit of Measure | Each |
Warranty | 5 Years |
