Miscellaneous Spare Parts
|
|
Loading, please wait...-

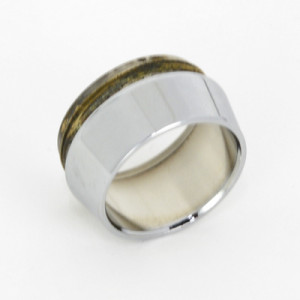

Flared Aerator Casing
SKU: SA7827
Use the Finish Code drop-down menu on the product page to calculate the price in various metal finishes.
This is the casing by itself without the flow restrictor or aerator. Learn More
Ex GST: AUD $17.81 Inc GST: AUD $19.59 -

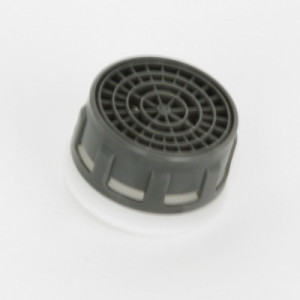

Flared Aerator Flow Restrictor Insert
SKU: SA7828
Spare part for our flared nose aerators. Restricted to 7.5 L/M.
Suits casing part number SA7827. Learn More
Ex GST: AUD $18.38 Inc GST: AUD $20.22 -
Trouble Ring for Selected Wall Flanges
SKU: SA7402
Use the Finish Code drop-down menu on the product page to calculate the price in various metal finishes.
Used to help fill a 12mm gap between the wall and the following flanges in situations where either the in-wall breech is installed shallow in the wall, or where an extended bonnet & spindle is required to be used and the wall flange leaves a gap between it and the wall:
- Roulette spout wall flange (approx. 64mm in diameter).
- Roulette wall top assembly flange (approx. 64mm in diameter).
- Heritage wall top assembly flange (approx. 64mm in diameter).
- Roulette Lever wall top assembly flange (approx. 64mm in diameter).
Custom Trouble Rings can be made on request. Priced on application.
When ordering please advise which tapware set you will be using the trouble ring on, attempts to use this with other tapware brands is not supported. Learn More
Ex GST: AUD $38.06 Inc GST: AUD $41.87 -
Solid Cover Plate
SKU: SA7521
Use the Finish Code drop-down menu on the product page to calculate the price in various metal finishes.
Select required hole size for solid brass cover plate from options.
8mm overall height.
When pairing this item with PA1621 - Diverter Union Nut & Tail, you should select this with 1/2" BSP Thread in Cover Plate.
Custom hole sizing can be made on request. Pricing on application. Learn More
Ex GST: AUD $44.70 Inc GST: AUD $49.17 -
Pressed Flange Cover Plate
SKU: SA7526
Use the Finish Code drop-down menu on the product page to calculate the price in various metal finishes.
This cover plate is suitable for Washing Machine and Cistern Cocks, & Bibcocks in each range. This part is also used on various exposed tapware sets.
We do not offer customisation of the dimensions of this item. If you need a selection of hole sizes in a cover plate, the Solid Cover Plate, SA7521 is the starting point. Learn More
Ex GST: AUD $22.70 Inc GST: AUD $24.97 -
Flat Pressed Flange Cover Plate
SKU: SA7528
Use the Finish Code drop-down menu on the product page to calculate the price in various metal finishes.
This cover plate is suitable for Washing Machine and Cistern Cocks, & Bibcocks in each range.
Outside Diameter: 77mm
Hole Size: 20.7mm (Suitable for 1/2" BSP thread)
Thickness: 0.6mm
We do not offer customisation of the dimensions of this item. If you need a selection of hole sizes in a cover plate, the Solid Cover Plate, SA7521 is the starting point. Learn More
Ex GST: AUD $22.70 Inc GST: AUD $24.97 -
Duo Mixer Plinth Kit
SKU: SA7523
Use the Finish Code drop-down menu on the product page to calculate the price in various metal finishes.
Designed to increase the height of our Duo Mixers by 115mm so they can be utilised with raised basin bowls.
Includes o-ring seal for base in contact with bench top.
Machined solid brass construction with a weight of approximately 2kg.
Includes extended mounting threads for the Duo Mixer body.
Duo Mixer not included. Learn More
Ex GST: AUD $252.00 Inc GST: AUD $277.20 -
Round Duo Mixer Flange
SKU: SA7522
Use the Finish Code drop-down menu on the product page to calculate the price in various metal finishes.
64mm outside diameter.
8mm overall height.
33.7mm internal diameter. Plain bore.
Custom cover plate sizing can be made on request. Pricing on application. Learn More
Ex GST: AUD $44.70 Inc GST: AUD $49.17 -
Duo Spacer
SKU: SA7525
Use the Finish Code drop-down menu on the product page to calculate the price in various metal finishes.
This duo spacer cover plate is useful if the hole in the bench top is too large for our Duo Mixers.
68mm wide by 45mm deep.
3mm overall height.
34mm internal diameter. Plain bore. Learn More
Ex GST: AUD $63.00 Inc GST: AUD $69.30 -
Hydroseal DR Brass Jumper Valve
SKU: PA8032
High quality DR brass hydroseals are standard all CB Rapid Action tapware.
Hydroseals are now also standard on all of our full turn tapware.
(Please note that hydroseals are not used in flick mixers). Learn More
Ex GST: AUD $5.60 Inc GST: AUD $6.16 -
Replacement Ceramic Cartridge & Button Kit for CB Flick Mixers & DB Series Mixers
SKU: PA8320
This code provides a cartridge and a replacement sticker button only. Please select preferred colour.
This button type is only really recommended for Chrome or Antique Brass finishes, other custom finishes generally require use of the engraved button. On later versions of the mixers the standard button is more easily removable so the button does not need to be replaced. (The engraved button option was only made available after this improvement).
We use a uniform size cartridge between all of our flick mixers. Learn More
Ex GST: AUD $29.40 Inc GST: AUD $32.34 -
Replacement Ceramic Cartridge for CB Flick Mixers & DB Series Mixers
SKU: PA8040
Replacement Ceramic Cartridge for CB Flick Mixers & DB Series Mixers
This code provides a cartridge only.
We use a uniform size cartridge between all of our flick mixers. Learn More
Ex GST: AUD $24.34 Inc GST: AUD $26.77 -
Deep Seat Raw Brass Spindle Extension (40mm Long)
SKU: PA1532RB
This extension is usually only suitable for basin taps with normal jumper valves.
Should not be used with our Rapid Action sets.*
Should not be used on the wall taps (wall top assemblies).*
These extensions are designed to allow for being cut down at the time of installation to suit the depth required.
If you would like us to machine down the extension piece to a specific length before sending we can do this for you. Learn More
Ex GST: AUD $29.48 Inc GST: AUD $32.43 -

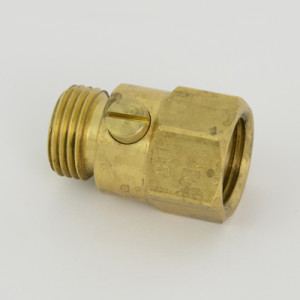

Bonnet Thread Extension (15 BSP) (Adds 15mm to Bonnet Thread) [Raw Brass]
SKU: PA1178RB
These extensions are designed to help counteract deep seats in walls by allowing more thread for the flange to screw on to.
These are suitable for extending standard action wall taps (wall top assemblies). The tap you require this extension for should be noted to CB when ordering.
If the breech is too deep in the wall you may need a combination of this component and a top assembly with a longer spindle to provide a satisfactory resolution. Please see the relevant spares section for suitable spindles. Extended bonnets & spindles are supplied with a bonnet thread extension piece.
Depending on the situation you may also need to add Trouble Rings to the wall flanges which are separate items and additional cost. Learn More
Ex GST: AUD $15.39 Inc GST: AUD $16.93 -
Bonnet Thread Extension (5/8 BSP) (Adds 15mm to Bonnet Thread) [Raw Brass]
SKU: PA8280RB
These extensions are designed to help counteract deep seats in walls by allowing more thread for the flange to screw on to.
These are suitable for extending Rapid Action wall taps (wall top assemblies). The tap you require this extension for should be noted to CB when ordering.
If the breech is too deep in the wall you may need a combination of this component and a top assembly with a longer spindle to provide a satisfactory resolution. Please see the relevant spares section for suitable spindles. Extended bonnets & spindles are supplied with a bonnet thread extension piece.
Depending on the situation you may also need to add Trouble Rings to the wall flanges which are separate items and additional cost. Learn More
Ex GST: AUD $15.39 Inc GST: AUD $16.93
