P Trap - Made to Order

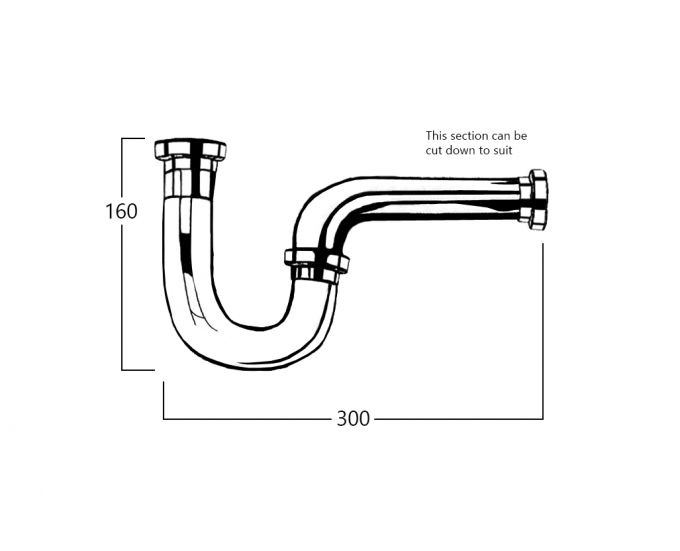

XA5601 Line Drawing

View the Specification tab below for further technical information.
P Trap - Made to Order

Metal Finish Info Icon Price shown below on opening this page is RRP for Chrome Plate finish (CP).
Use Finish Code drop-down menu to calculate the price for other metal finishes.
Any Required Fields # must be selected to generate a valid SKU order code and valid price.

SKU: XA5601

Unit of MeasureEach

Ex GST: AUD $392.00 Inc GST: AUD $431.20
A "P Trap" is for connecting the waste to the wall.
Please note that the outlet tail has a 5 degree fall.

On an order please specify:
Tail Length Required:   300mm Default
Inlet Size:   32mm, 40mm, 50mm
Outlet Size:   40mm, 50mm

Important Note: The raw material of the P Trap is Copper with Brass nuts, this changes the finishes in regards to Raw (RBC) and Polish to Plate (PP). Giving the following options:

Raw (RBC): Left with the heat patterns and weld marks. Majority copper with brass nuts. It will mature over time.
Polish to Plate (PP): Polished to remove the manufacture marks, this finish will mature and will give you a mixed copper polish finish with brass nuts.
Dull Antique Brass (DAB): This finish is electroplated over the copper. It will be resistant to tarnishing and matches well with Polish to Plate (PP) finishes on the tapware.
For matching in with Polished Brass (PB) finishes, we suggest using our Antique Brass (AB) or Dull Antique Brass (DAB) finishes on this item.

Raw copper tubing has stamped material codes rolled into it as part of the tube manufacture process. This stamp mark may be visible on the finished product, even with polished or electroplated finishes.
Please select options below...

Maximum number of characters: 255

Required Fields

Ex GST: AUD $392.00 Inc GST: AUD $431.20
